TECNO MACCHINE GEAR DRIVING MACHINES

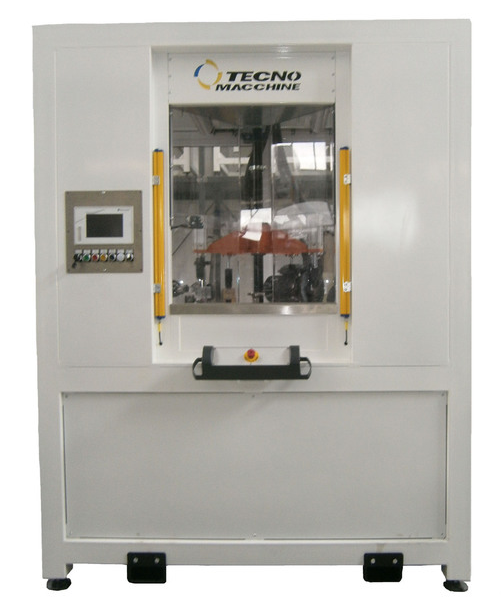

Gear Deburring Machine

TM200 MV

The gear deburring machine TM 200 MV was developed for deburring straight-toothed and helical spur gears, straight-toothed bevel gears as well as sprockets, shafts and pinions with diameters from 30 to 200mm.

It features a rotary table with five workstations:

Workstation 1: Pick and Place

Workstation 2: Deburring top

Workstation 3: Deburring bottom

Workstation 4: Brushing top

Workstation 5: Brushing bottom

The machine stands out for its rapiditiy in machining, its simplicity in handling, its high flexibility and its short set-up times. Every workstation can be used singularly and the number of revolutions and rotational speed of the tools can be regulated by means of potentiometers.

Its closed structure and safety devices guarantee safe, hygienic and low-noise working conditions.
